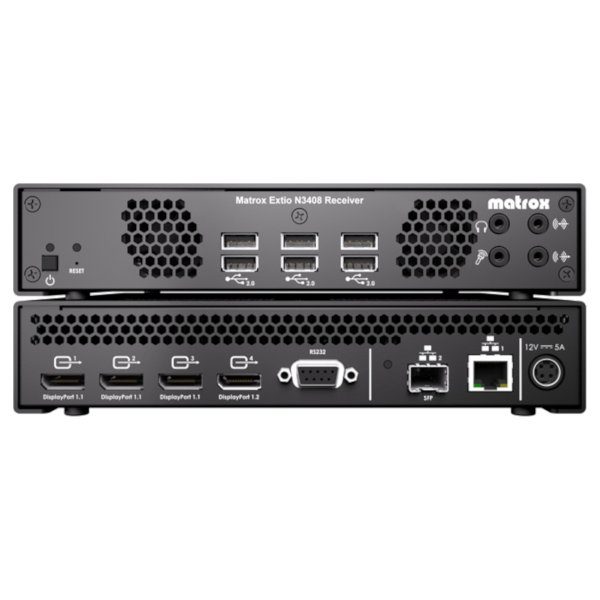

Matrox Extio 3 N3408 IP KVM Extender Receiver

Description

Matrox Extio 3 N3408 Quad Display IP KVM Extender Receiver Appliance

Matrox® Extio N3408 are the world’s first IP KVM extenders to deliver 4Kp60 4:4:4 UHD performance or quad-display capabilities over standard Gigabit Ethernet at unprecedented low bitrates. Extio N3408 can be configured as a point-to-point or networked KVM extender, extending multiple video, keyboard, mouse, USB 2.0, and audio signals using a single copper or fiber optic cable. Ready compatibility with standard network switches significantly diminishes the total cost of ownership to deliver a scalable KVM matrix switching solution.

General
• Option to de-embed digital audio and convert to analog audio
• Lockable power connector, external 12V power supply unit
• Standalone or rack-mountable unit (1U 1⁄2 R)
• Status LED indicators
• On/off and recessed reset button
Connections to Local Devices
• 1x DisplayPort 1.2 video output connectors
• 3x DisplayPort 1.1 video output connectors
• 6x USB 2.0 Type A
• Line in 3.5 mm, line out 3.5 mm, mic in 3.5 mm, headphone out 3.5 mm
Link
• 1x RJ45 network port
• 1x SFP cage (supports SFP multimode and single-mode transceivers,
sold separately)
Part Number
• XTO3-N3408RX
Maximum Supported Resolution
• 1x 3840×2160 @60Hz
• 2x 3840×2160 @30Hz
• 3x 1920×1200 @60Hz
• 4x 1920×1080 @60Hz
• 2x 2560×1600 @60Hz
