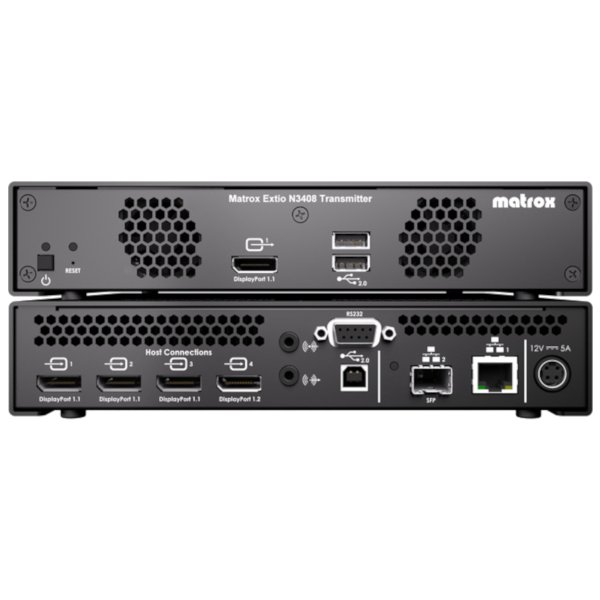

Matrox Extio 3 N3408 IP KVM Extender Transmitter

Description

Matrox Extio 3 N3408 Quad Display IP KVM Extender Transmitter Appliance

Matrox® Extio N3408 are the world’s first IP KVM extenders to deliver 4Kp60 4:4:4 UHD performance or quad-display capabilities over standard Gigabit Ethernet at unprecedented low bitrates. Extio N3408 can be configured as a point-to-point or networked KVM extender, extending multiple video, keyboard, mouse, USB 2.0, and audio signals using a single copper or fiber optic cable. Ready compatibility with standard network switches significantly diminishes the total cost of ownership to deliver a scalable KVM matrix switching solution.

General
• Embedded digital audio through DisplayPort, with option to de-embed digital audio on the receiver unit
• Lockable power connector, external 12V power supply unit
• Standalone or rack-mountable unit (1U 1⁄2 R)
• Status LED indicators
• On/off and recessed reset button
Connections to Host System
• 1x DisplayPort 1.2 video input connectors
• 3x DisplayPort 1.1 video input connectors
• 1x USB 2.0 Type B
• Line in 3.5 mm, line out 3.5 mm, RS-232 9-pin D-type (supported in certain configurations)
Connections to Local Devices
• 1x DisplayPort 1.1
• 2x USB 2.0 Type A
Link
• 1x RJ45 network port
• 1x SFP cage (supports SFP multimode or single-mode transceiver, sold separately)
Part Number
• XTO3-N3408TX
Maximum Supported Resolution
• 1x 3840×2160 @60Hz
• 2x 3840×2160 @30Hz
• 3x 1920×1200 @60Hz
• 4x 1920×1080 @60Hz
• 2x 2560×1600 @60Hz
